Observe the Safety instructions (Click Here...) to use the product safely and prevent any risk of injury or property damage.

Components

The following includes a listing of components that you will receive with the X-Station 2 unit.

Return to top

Parts Required for ClockOn

• X-Station 2 unit
• Wall bracket
• Bracket Fixing Screw
• PVC anchors
• Fixing screws
• Drilling Template

ClockOn also supplies a Power over Ethernet (PoE) injector to power the scanner. This is connected to the ethernet port in the back of the Unit, via an ethernet cable to provide both the data connection to the network as well as the power to the unit.

NOTES

1.IMPORTANT - DO NOT install the suprema software as it will interfere with the ClockOn software.
2. An additional network cable will be required to be run from your network to the scanner.
2. The additional cables are for Door Control and is not supported by ClockOn.
3. Anchors points needed if not mounting directly into a wall stud

Return to top

Installation

Fixing the bracket and the product

1. Determine the correct position to install the bracket using the provided drilling template. Fix the bracket firmly using fixing screws through the bracket to the position where X-Station 2 will be installed.


2. Assemble the cable cover and install X-Station 2 onto the fixed bracket.

3. Connect X-Station 2 to the bracket by rotating the product fixing screw of X-Station 2.


Network Connection

TCP / IP

LAN connection (connecting to a Switch or Router)

You can connect the product to a switch or router using a general type CAT-5 cable. You will require an Ethernet cable of sufficient length to connect the scanner to the provided PoE injector that will power the scanner and connect the device to your computer network.

The “Lan In” Side of the PoE injector should be connected to your switch or router.

Return to top

Connecting to ClockOn

Once installed and powered on, the Led Lamp on the front of the scanner should flash Blue/light blue this will indicate that the device is on your computer network.

You can then search for the unit using the Search function in the Terminal manager screen.

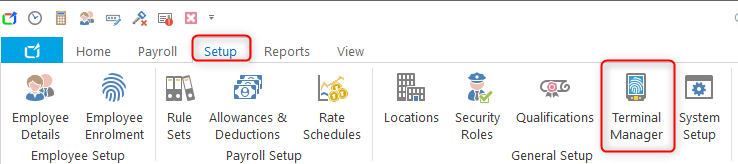

1. Navigate to Setup > Terminal Manager

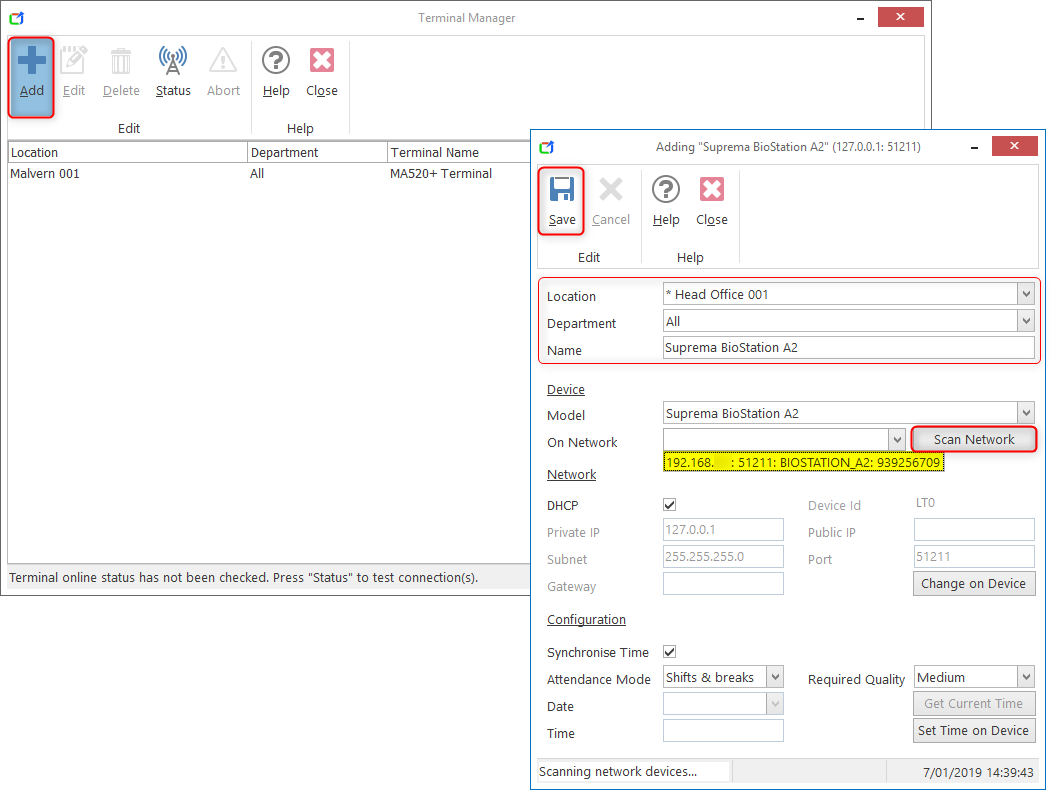

2. Click Add to add a new scanner to the ClockOn system.
3. Select the Location the terminal is being added to.
4. Select the department(s) using this terminal. Default is 'All'
5. If required, update the Name. The default for the name will be the terminal model name.  This can be replaced with a customized name. e.g. Lunchroom scanner
6. Select the device Model from the drop-down list
7. Click on Scan Network - Please make sure the computer you are setting up the scanner on is on the same network
8. Select the scanner from the On Network list.
9. Click on Save


NOTE: If your ClockOn server is not located onsite or if you are a Cloud or Managed Payroll Services customer your site will require a static IP address from your internet provider and port forwarding to connect through to the scanner on TCP port 51211

It is recommended that the unit be given a reserved DHCP address to prevent IP conflicts

For more information read: Adding a Biometric Scanner
